Industrial Automation Products

TURCK • RKD1195234

BS 5233-0
FIELD-WIREABLE CONNECTOR
PRE-EQUIPPED
WITH RIGHT-ANGLED 3-PIN
PBT HOUSING
4A RATED CURRENT

TURCK • RKD1388165

BS 5241-0
(U6540)
ACTUATOR &
SENSOR
FIELD WIREABLE
CONNECTOR A
FEMALE
M8X1
RIGHT ANGLE
4 CONTACTS
4A

TURCK • RKD1229538

BS 540
DISCONTINUED BY MANUFACTURER
MOUNTING BRACKET
SENSOR ACCESSORY
ALUMINUM BLOCK
STEEL SLEEVE
4MM BARREL DIAMETER
(69475)

TURCK • RKD1325352

BS 71101-0/21
(U2-04062)
CONNECTOR
ROUND
1-1/8IN
FIELD WIREABLE
FEMALE CONNECTOR
STRAIGHT
10PIN
METAL COUPLING NUT
SCREW CLAMP TERMINAL

TURCK • RKD1325354

BS 71101-0/21 9-16MM
(U2-14991)
FIELD WIREABLE PLUGS AND RECEPTACLES

TURCK • RKD1330057

BS 71121-0/21
CONNECTOR
FIELD WIREABLE
1-1/8IN MINIFAST
STRAIGHT MALE
GLASS FILLED NYLON
PG 21 CABLE GLAND
13-18MM CABLE DIAMETER
SCREW TERMINALS
14-18AWG CONDUCTORS
600VAC/DC
7AMP
12-PIN
IP67
U2-03909

TURCK • RKD1417734

BS 71121-0/21 9-16MM
(U2-14993)
CONNECTOR
FIELD WIREABLE
1-1/8"
MINIFAST
STRAIGHT MALE
GLASS FILLED NYLON
PG 21 CABLE GLAND
9-16MM CABLE DIAMETER
SCREW TERMINALS
14-18 AWG CONDUCTORS
600 VAC/DC
7 AMP
12 PIN
IP67

TURCK • RKD1330059

BS 716B61-0/21
(U2-04070)
FIELD WIREABLE PLUGS AND RECEPTACLES
6-PIN STRAIGHT MALE CONNECTOR
SCREW/CLAMP CONNECTION
PLASTIC HOUSING
8A

TURCK • RKD1388167

BS 7181-0/21
(U2-04066)
FIELD WIREABLE PLUGS AND RECEPTACLES

TURCK • RKD1195236

BS 7191-0/21
(U2-04064)
1 1/8'
'
ROUND CONNECTOR
FIELD WIREABLE
PLUGS AND RECEPTACLES
SCREW-CLAMP TERMINAL

TURCK • RKD1325356

BS 8-0
(U2-02866)
FIELD WIREABLE PLUGS AND RECEPTACLES
ACCEPTS 6-8 MM CABLE DIAMETER
60 VAC/DC
3 A
MATES W/ 7 PIN CORDSETS AND RECEPTACLES

TURCK • RKD1417736

BS 81121-0/PG9
CONNECTOR
STRAIGHT MALE M12 EUROFAST FIELD WIREABLE
12 PINS
SOLDER TERMINATION
30 V
1 AMP
PLASTIC HOUSING
(U2-02854)

TURCK • RKD1388169

BS 8141-0/LABEL
(U2-12532)
CONNECTOR
FIELD WIREABLE
M12 EUROFAST
STRAIGHT MALE
PG 7 CABLE GLAND
4-6MM CABLE DIAMETER
SCREW TERMINALS
UP TO 18 AWG CONDUCTORS
250 V
4 AMP
4-PIN STANDARD KEY
COLOR CODED &
NUMBERED PINS

TURCK • RKD1195238

BS 8141-0/PG 9
(U6551)
CONNECTOR
FIELD WIREABLE
M12 EUROFAST
STRAIGHT MALE
PG 9 CABLE GLAND
6-8MM CABLE DIAMETER
SCREW TERMINALS
UP TO 18 AWG CONDUCTORS
250 V
4 AMP
STANDARD KEY
4 PIN

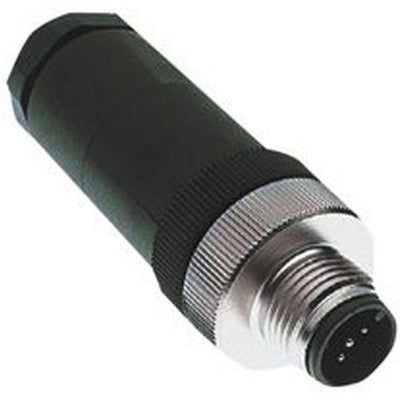

TURCK • RKD1150793

BS 8141-0/PG 9/ASI
(U2-13621)
CONNECTOR
MALE
M12 STRAIGHT
BS SERIES
4 POLE
THREADED MATING
PG9 CABLE OPENING
SCREW TERMINAL TERMINATION
IEC IP67

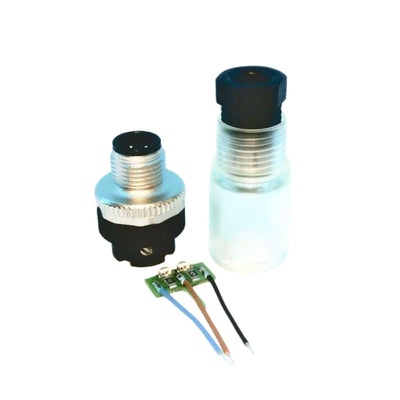

TURCK • RKD1150795

BS 8141-P7X2-0
(U6425)
CONNECTOR
FIELD WIREABLE
M12 EUROFAST
STRAIGHT MALE
PBT / CLEAR
4-6MM CABLE DIAMETER
20-26 AWG
INSULATION AVOIDANCE
10-30 V
4 AMP
4-PIN
STANDARD KEY
SIGNAL + POWER LEDS

TURCK • RKD1330061

BS 8146-0
(U6577)
CONNECTOR
FIELD WIREABLE
IDC
IP67
STRAIGHT MALE
NICKEL PLATED BRASS
4-5MM CABLE DIAMETER
26-22 AWG CONDUCTORS
32 V
4 AMP
STANDARD KEY
4 PIN

TURCK • RKD1417738

BS 8151-0/8-11MM
CONNECTOR ASSEMBLY
STRAIGHT MALE FIELD WIREABLE
M12 CONNECTION
5 PIN
SCREW TERMINAL WIRE TERMINATION
PLASTIC HOUSING
U2-02019

TURCK • RKD1330065

BS 8151-0/PG9
(U6570)
CONNECTOR
FIELD WIREABLE
M12 EUROFAST
STRAIGHT MALE CONNECTION
PG 9 CABLE GLAND
4-8MM CABLE DIAMETER
SCREW TERMINALS
UP TO 18 AWG CONDUCTORS
60 V
4 AMP
STANDARD KEY
5 PIN

TURCK • RKD1417740

BS 8151-0/PG9/DNET
(U3-01275)
CONNECTOR
BS8151 SERIES
CIRCULAR MALE CONNECTION
M12 PLUG
A CODED
5 POSITION
STRAIGHT
SCREW TERMINATION
4 AMP
30 VOLT
18 AWG
DEVICENET

TURCK • RKD1269491

BS 8151-0/PG9/LABEL
(U2-12968)
CONNECTOR
FIELD WIREABLE
M12 EUROFAST
STRAIGHT MALE CONNECTION
PG 9 CABLE GLAND
4-8MM CABLE DIAMETER
SCREW TERMINALS
UP TO 18 AWG CONDUCTORS
60 V
4 AMP
STANDARD KEY
5 PIN
COLOR CODED &
NUMBERED

TURCK • RKD1417742

BS 8157-0/PG9
(U2-02853)
CONNECTOR
FIELD WIREABLE
M12 EUROFAST
STRAIGHT MALE
BLACK PBT
PG 9 CABLE GLAND
6-8MM CABLE DIAMETER
SPRING CLAMP
UP TO 20 AWG CONDUCTORS
125V
4 AMP
5-PIN
STANDARD KEY

TURCK • RKD1229540

BS 8181-0
CONNECTOR
FIELD WIREABLE
M12 EUROFAST
STRAIGHT MALE
PG 9 CABLE GLAND
6-8 MM CABLE DIAMETER
SCREW TERMINALS
UP TO 18 AWG CONDUCTORS
60 VAC / 75 VDC
2 AMP
STANDARD KEY
8 PIN
(U0885-25)

TURCK • RKD1195242

BS 8181-0/4-6MM
(U2-25392)
CONNECTOR
FIELD WIREABLE
M12 EUROFAST
STRAIGHT MALE
8-PIN
SCREW TERMINATION
PLASTIC HOUSING
75V
2 AMP
