HARTING • RKD551995

09 06 231 6821
SOCKET
DIN41612
MH
31WAY
PRODUCT RANGE:-
NO. OF CONTACTS:31CONTACTS
GENDER:RECEPTACLE
PITCH SPACING:5.08MM
NO. OF ROWS:3 ROW
ROWS LOADED:D + B + Z + D + Z
CONTACT PLATING:SILVER PLATED CONTACTS
CONTACT MATERIAL:COPPER
NO.ROHS COMPLIANT: YES

HARTING • RKD439696

09 11 000 6225
HEAVY DUTY CONTACT
SOCKET
CRIMP
3AWG
PRODUCT RANGE:HAN-MODULAR SERIES
CONTACT GENDER:SOCKET
WIRE SIZE AWG MAX:3AWG
WIRE SIZE AWG MIN:-
CONTACT TERMINATION TYPE:CRIMP
CURRENT RATING:100A
CONTACT MATERIAL:COPPER ALLOY ROHS COMPLIANT: YES

HARTING • RKD378113

09 12 007 3001
HEAVY DUTY CONNECTOR
HAN Q
INSERT
7+PE CONTACTS
MALE
SIZE 3
10 AMP
400-600 V
6 KV
0.14-2.5 MM CROSS SECTION
-40 TO +125 DEGREES C

HARTING • RKD378115

09 12 007 3101
RECEPTACLE
HAN INSERT
HAN Q SERIES
SIZE 3A
10 AMP
600 V
7 CONTACTS
FEMALE
CRIMP TERMINATION
-40 TO +125 DEGREES C
(HAN Q 7/0-F)

HARTING • RKD378117

09 12 021 3001
CONNECTOR INSERT
HEAVY DUTY
CRIMP TERMINATION
MALE
3 A SIZE
12 CONTACTS
10 A
400 V

HARTING • RKD661104

09 14 000 6152
RECTANGULAR POWER CONTACT
PNEUMATIC
HAN-MODULAR
PIN
ROHS COMPLIANT: NA

HARTING • RKD661106

09 14 000 6174
CONTACT PIN MODULE
HAN-MODULAR
TYPE: PNEUMATIC
HEAVY-DUTY CONNECTOR
1/2 INCH OUTER DIAMETER
1/4 INCH TUBE INNER DIAMETER
POLYCARBONATE
BLACK

HARTING • RKD551997

09 14 000 6211
HEAVY DUTY CONTACT
PIN
CRIMP/SOLDER
PRODUCT RANGE:HAN-MODULAR SERIES
CONTACT GENDER:PIN
WIRE SIZE AWG MAX:-
WIRE SIZE AWG MIN:-
CONTACT TERMINATION TYPE:CRIMP / SOLDER
CURRENT RATING:1.5A
CONTACT MATERIAL:COPPER ALLOY ROHS COMPLIANT: NA

HARTING • RKD545012

09 14 000 6253
RECTANGULAR POWER CONTACT
PNEUMATIC
HAN-MODULAR
SOCKET
ROHS COMPLIANT: NA

HARTING • RKD545014

09 14 000 6258
PNEUMATIC INSERT
4MM
FEMALE
PRODUCT RANGE:HAN-MODULAR
CONTACT GENDER:SOCKET
BORE SIZE:4MM
EXTERNAL DIAMETER:8.2MM
ROHS COMPLIANT: NA

HARTING • RKD501384

09 14 000 6279
PNEUMATIC CONTACT
FEMALE
6 MM DIAMETER
UP TO 8 BAR OPERATING PRESSURE
PNEUMATIC CONTACT
-40 TO +80 DEGREES C

HARTING • RKD312007

09 14 000 9915
ADAPTER
HAN-QUINTAX MODULE CONNECTOR
ACCESSORY TYPE:HAN-QUINTAX METAL ADAPTER
FOR USE WITH:HAN-QUINTAX 2-POSITION MODULE
PRODUCT RANGE:- ROHS COMPLIANT: NA

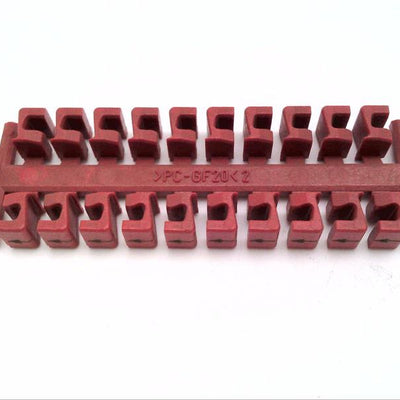

HARTING • RKD545019

09 14 000 9960
LOCKING TABS
ACCESSORY TYPE:LOCKING TAB
FOR USE WITH:HINGED FRAME HAN CONNECTORS
PRODUCT RANGE:-
ROHS COMPLIANT: NA

HARTING • RKD501386

09 14 001 4623
DATA TRANSMISSION INDUSTRIAL MODULAR CONNECTOR
HAN-MODULAR SERIES
SINGLE MODULE
FOR RJ45 CONNECTIVITY
MALE
PLOYCARBONATE
PEBBLE GREY

HARTING • RKD501388

09 14 002 2651
RECTANGULAR CONNECTOR
PLUG
2WAY
SCREW
PRODUCT RANGE:HAN-MODULAR SERIES
NO. OF CONTACTS:2CONTACTS
RECTANGULAR SHELL SIZE:-
GENDER:PLUG
HEAVY DUTY CONTACT TYPE:SCREW PIN
CURRENT RATING:100A
WIRE SIZE AWG MAX:2AWG ROHS COMPLIANT: YES

HARTING • RKD378119

09 14 002 3101
HAN-QUINTAX MODULE
PLUG
4WAY
CRIMP
PRODUCT RANGE:HAN-MODULAR SERIES
GENDER:RECEPTACLE
RECTANGULAR SHELL SIZE:-
HEAVY DUTY CONTACT TYPE:CRIMP SO

HARTING • RKD439702

09 14 002 3151
HEAVY DUTY MODULE
RCPT
2POS
35MM2
PRODUCT RANGE:HAN-MODULAR SERIES
NO. OF CONTACTS:2CONTACTS
RECTANGULAR SHELL SIZE:-
GENDER:RECEPTACLE
HEAVY DUTY CONTACT TYPE:CRIMP SOCKET - CONTACTS NOT SUPPLIED
CURRENT RATING:100A ROHS COMPLIANT: YES

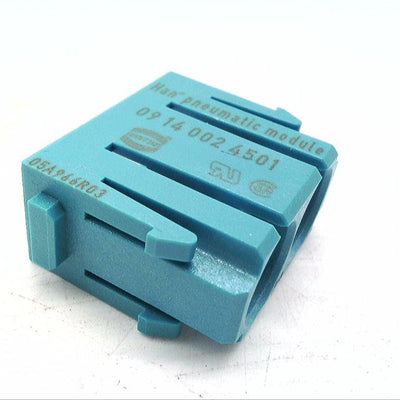

HARTING • RKD545021

09 14 002 4501
PNEUMATIC
INSERT MODULE
6MM
PRODUCT RANGE:HAN-MODULAR SERIES
GENDER:PLUG
RECEPTACLE
RECTANGULAR SHELL SIZE:-
NO. OF CONTACTS:2CONTACTS
HEAVY DUTY CONTACT TYPE:-
CURRENT RATING:-
WIRE SIZE AWG MAX:-
WIRE SIZE AWG MIN:-
ROHS COMPLIANT: NA

HARTING • RKD439704

09 14 003 2602
CONNECTOR
RECTANGULAR POWER
PLUG
3POS
PRODUCT RANGE:HAN-MODULAR C SERIES
NO. OF CONTACTS:3CONTACTS
RECTANGULAR SHELL SIZE:-
GENDER:PLUG
HEAVY DUTY CONTACT TYPE:SCREW PIN
CURRENT RATING:40A
WIRE SIZE AWG MAX:8AWG ROHS COMPLIANT: YES

HARTING • RKD552004

09 14 003 2701
POWER CONNECTOR
HEAVY DUTY
3 CONTACT
FEMALE
40 AMP
AXIAL SCREW TERMINATION
600 V
GRAY
SILVER CONTACT FINISH
COPPER ALLOY CONTACT MATERIAL

HARTING • RKD312011

09 14 003 3002
HEAVY DUTY CONNECTOR INSERT
PIN MODULE
LESS CONTACTS
HAN-MODULAR C SERIES
3
1
PLUG
ROHS COMPLIANT: YES

HARTING • RKD312013

09 14 003 3102
HEAVY DUTY CONNECTOR INSERT
SOCKET MODULE
LESS CONTACTS
HAN-MODULAR C SERIES
3
1
RECEPTACLE
ROHS COMPLIANT: YES

HARTING • RKD545023

09 14 004 3041
PROTECTED MODULE
MALE
4 POSITION
HAN CC
PRODUCT RANGE:HAN-MODULAR SERIES
NO. OF CONTACTS:4CONTACTS
RECTANGULAR SHELL SIZE:-
GENDER:PLUG
HEAVY DUTY CONTACT TYPE:CRIMP PIN - CONTACTS NOT SUPPLIED
CURRENT RATING:40A ROHS COMPLIANT: YES

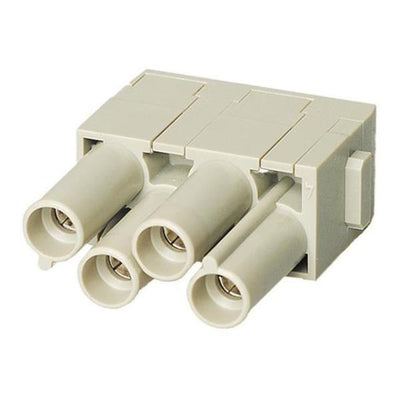

HARTING • RKD378121

09 14 004 3141
POWER CONNECTOR
HAN-MODULAR SERIES
HEAVY DUTY
4-POSITION
FEMALE
40 AMPS
830 VOLTS
16~10 AWG WIRE GAUGE
CRIMP TERMINATION
POLYCARBONATE (PC) HOUSING
