B&R •

X20DOD322
8 digital outputs
Source connection
2-wire connections
GND for signal supply
Integrated output protection

B&R • GMUK10519

X20DOF321
16 digital outputs
Sink circuit
1-wire connections
Integrated output protection

B&R • 14078

X20DOF322
DIGITAL OUTPUT MODULE
16 DIGITAL OUTPUTS
SOURCE CONNECTION
1-WIRE CONNECTIONS
INTEGRATED OUTPUT PROTECTION

B&R • 15238/BX0065

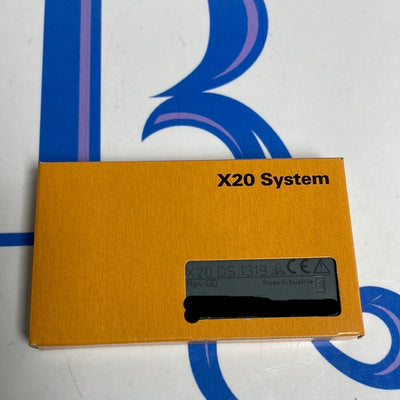

X20DS1319
I/O MODULE
4 DIGITAL INPUT CHANNELS
24 VDC
1.3MA
100 KHZ INPUT FREQUENCY

B&R • MKUK0089

HIPERFACE encoder interface
Encoder input monitoring
11 VDC and GND for encoder supply
NetTime timestamp: Position time

B&R • GMUK10553

X20DS1928
EnDat 2.1 and EnDat 2.2 encoder interface
Encoder input monitoring
5 VDC and GND for encoder supply
NetTime timestamp: Position time

B&R • 17731

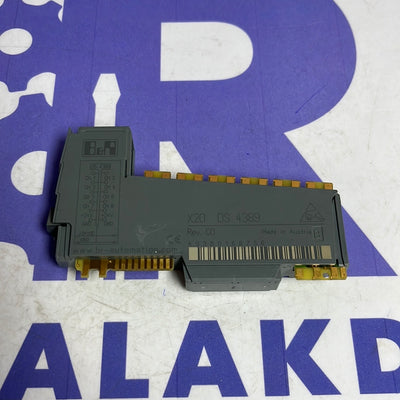

X20DS4389
I/O MODULE
4 DIGITAL INPUT CHANNELS
4 DIGITAL CHANNELS CONFIGURABLE AS INPUTS OR OUTPUTS
4 EDGE DETECTION UNITS WITH TIMESTAMP FUNCTION
24 VDC

B&R • 15781

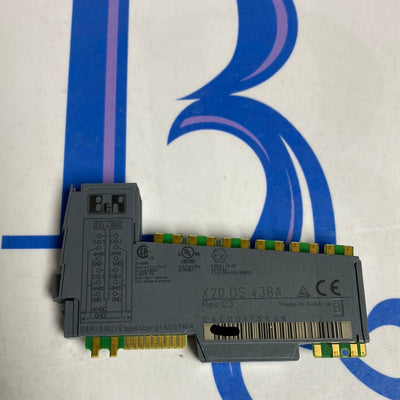

X20DS438A
I/O MODULE
24 VDC
4 DIGITAL CHANNEL
20 M / 3 PIN SENSOR CABLE

B&R • GMUK10347

X20EM0611
Intel Atom 400 MHz compatible with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining, onboard USB and RS485
512 MB LPDDR4 SDRAM
1 GB onboard flash drive
Fanless
No battery

B&R • GMUK10349

X20EM0612
Intel Atom 0.8 GHz with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining, onboard USB and RS485
768 MB LPDDR4 SDRAM
1 GB onboard flash drive
Fanless
No battery

B&R • GMUK10350

X20EM0613
Intel Atom 1.3 GHz with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining, onboard USB and RS485
1 GB LPDDR4 SDRAM
2 GB onboard flash drive
Fanless
No battery

B&R • GMUK10351

X20EM1611
Intel Atom 400 MHz compatible with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining, onboard USB and RS485
1 slot for modular interface expansion
512 MB LPDDR4 SDRAM
1 GB onboard flash drive
Fanless
No battery

B&R • GMUK10352

X20EM1612
Intel Atom 0.8 GHz with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining, onboard USB and RS485
1 slot for modular interface expansion
768 MB LPDDR4 SDRAM
1 GB onboard flash drive
Fanless
No battery

B&R • GMUK10353

X20EM1613
Intel Atom 1.3 GHz with integrated I/O processor
Ethernet, POWERLINK V2 with poll-response chaining, onboard USB and RS485
1 slot for modular interface expansion
1 GB LPDDR4 SDRAM
2 GB onboard flash drive
Fanless
No battery

B&R • GMUK10615

X20ET8819
NetTime time stamp has a resolution of 20 ns
Recording and analysis of CRC and frame errors
Triggers can also be activated using external digital signals
Analysis of both half-duplex and full-duplex networks
Able to record two networks simultaneously

B&R • GMUK10484

X20HB1881
Hub expansion module
1x hub 100 BASE-FX
Fiber optic multimode cable
Range up to 2 km
Hot-swap-capable

B&R • GMUK10485

X20HB1882
Hub expansion module
1-port hub, 100BASE-FX
Single-mode glass fibre cables
Range up to 50 km
Hot-swappable

B&R • 17610 BX0711

Hub expansion module
2x Hub 100 BASE-FX

B&R • NKUK1011

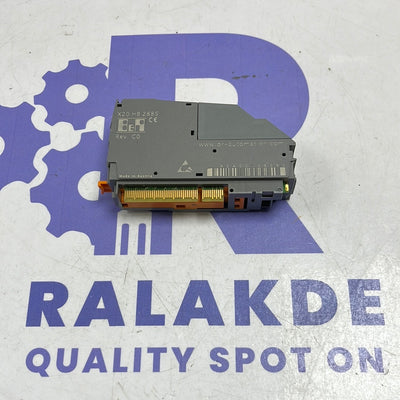

X20HB2885
EXPANSION MODULE
ACTIVE HUB
2 X FAST ETHERNET HUB FOR REDUNDANT WIRING
1.17 W CONSUMPTION
STATUS INDICATORS

B&R • GMUK10486

X20HB2886
Active hub expansion module
2x 100 BASE-FX hub for redundant wiring
Hot-swap-capable

B&R • 12755

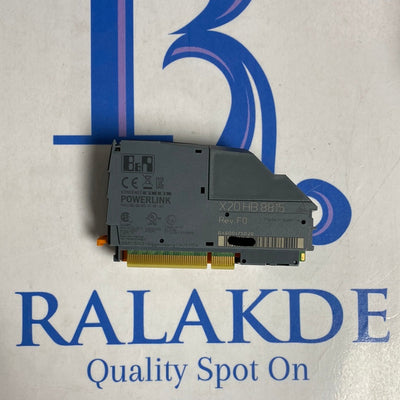

X20 HB8815

X20 HB 8815

POWERLINK
Up to 2 slots for hub expansion modules
3x / 5x POWERLINK hub
"ETH" port: Interface for TCP/IP network
"PLK" port: Interface for POWERLINK network

B&R • 16710 BX0770

X20HB8880
FAST ETHERNET HUB
HUB EXPANSION MODULE
2X HUB 100 BASE-FX
100 MBITS
1-2 SLOTS

B&R • GMUK10487

X20HB8884
Connecting POWERLINK devices to the POWERLINK cable redundancy system
Integrated compact link selector function

B&R • GMUK10477

X20IF0000
Cover for unused interface module slots
IF dummy modules required if the X20 system is subjected to increased vibration fatigue
Module with no electrical function
