Industrial Automation Products

FESTO • VSEU0131

FESTO
Valve Island
CPV10GEASI4E4AZ
170537
ELECTRICAL INTERFACE FOR VALVE MANIFOLD

FESTO • BSWFHSS0172

CPV10GEASI8E8AZM8
FIELD BUS MODULE
ELECTRICAL AS INTERFACE
24 VDC
8 DIGITAL INPUTS
PNP
-5 TO +50 DEGREES C
IP65
187714

FESTO • DTGEU23716

CPV10GEDI018
ELECTRICAL INTERFACE
24 VDC
LED INDICATORS
16 INPUTS / 8 OUTPUTS (OR 16 VALVES)
IP65
(165809)
      +
CPV10VIP8M7B
MULTI-PIN MANIFOLD
FOR CPV10 VALVE MANIFOLD
8 STATIONS
152423

Festo • NRUS5126

CPV10GEMP6
VALVE BLOCK INTERFACE
24 VDC
6 SLOT
-0.9-10 BAR OPERATING PRESSURE
18254

FESTO • BSWFHSS0159

CPV10GEMP8
MANIFOLD INTERFACE
ELECTRO-PNEUMATIC
8 STATION
FOR PNEUMATIC VALVE ASSEMBLY
(18255)

FESTO • MPEU16132

CPV10M1H5JSM7
SOLENOID VALVE
5/2 DOUBLE SOLENOID
10 MM VALVE SIZE
24 VDC
0.46 W
M7 PORT SIZE
-0.9 - 10 BAR
IP65
(161415)

Festo • SSUK1369

CPV10M1H5LSM7
AIR SOLENOID VALVE
PART NUMBER: 161414
5/2-WAY
MONOSTABLE
10 MM
STANDARD NOMINAL FLOW RATE: 400 I/MIN
SINGLE SOLENOID
21 V DC
OPERATING VOLTAGE: 24 VDC
W/O FLOW CONTROL OPTION
PILOT-CONTROLLED
NON-REVERSIBLE

FESTO • DTGEU4606

CPV10M1H5LSM7BEX
AIR SOLENOID VALVE
CPV10 SERIES
5/2
MONOSTABLE VALVE FUNCTION
ELECTRICAL ACTUATION TYPE
10 MM VALVE SIZE
400 L/MIN STANDARD NOMINAL FLOW RATE
M7 PNEUMATIC WORKING PORT
0-10 BAR OPERATING PRESSURE
4 MM NOMINAL WIDTH
550696

Festo • SHGE5202

CPV10VI
VALVE MANIFOLD
CPV10 SERIES
AS-INTERFACE
(10) TERMINALS
-0.9-10 BAR OPERATING PRESSURE
(8) VALVE POSITIONS MAX.
(16) VALVE FUNCTIONS MAX.
(2) PRESSURE ZONES MAX.
10 MM VALVE SIZE
IP65
18200

Festo • MPEU1580

CPV14BS2XGRAZ18
FLOW CONTROL VALVE
CPV14 SERIES
ONE-WAY
FOR VALVES OF COMPACT PERFORMANCE
(184143)

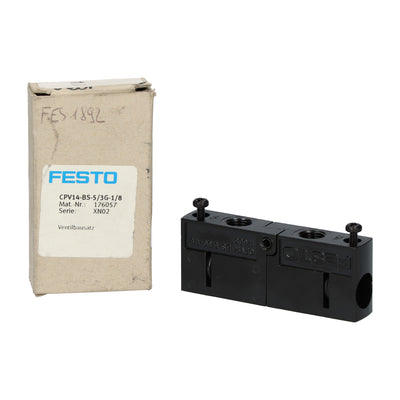

Festo • NRUS0171

CPV14BS53G18
VALVE KIT
OPERATING MEDIUM: COMPRESSED AIR
PRESSURE RATING: 2.5 bar...10 bar
VALVE FUNCTION: 5/3, CLOSED
PNEUMATIC CONNECTION: G1/8

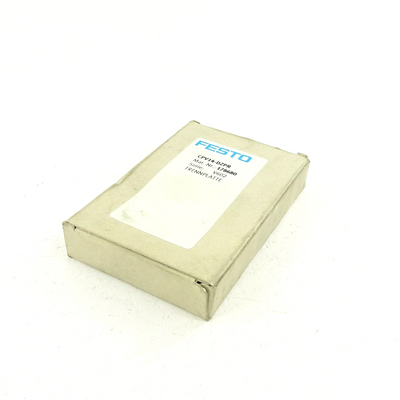

Festo • NKEU3541

CPV14DZPR
(178680)
SEPARATOR PLATE

Festo • SHGE1752

CPV14EPLG
PNEUMATIC END PLATE
CPV14 SERIES
METAL
(162546)

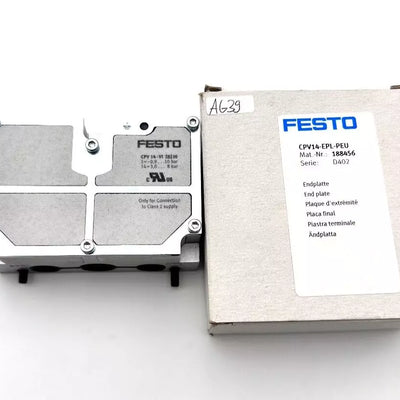

Festo • SSUK18514

CPV14EPLPEU
END PLATE
(188456)

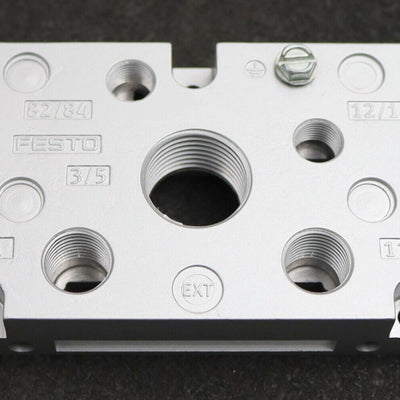

Festo • MPEU1543

CPV14EPRE
PNEUMATIC END PLATE

FESTO • DTGEU18253

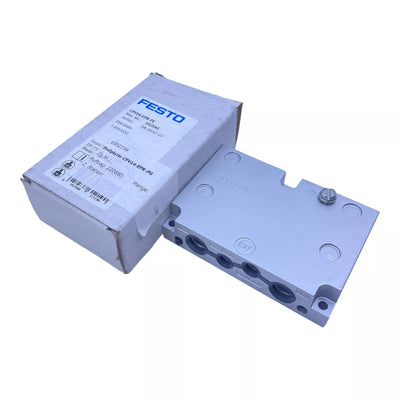

CPV14EPRPE
END PLATE
LEFT
FOR CPV VALVES
(162541)

FESTO • PSGUS4703

CPV14EPRPG
PNEUMATIC MANIFOLD END PLATE
INTERNAL AUXILIARY PILOT AIR
TUBING VIA PNEUMATIC MULTIPLE CONNECTOR PLATE
RIGHT SIDE

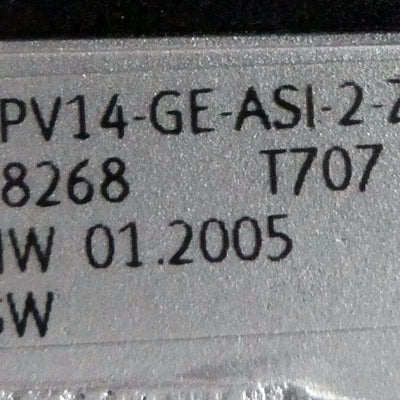

Festo • NRUS4559

CPV14GEASI2Z
MANIFOLD
ELECTRICAL INTERFACE
24 VDC
(18268)
+
161360
AIR SOLENOID VALVE
5/2 WAY VALVE
SINGLE SOLENOID
SPOOL VALVE
14 MM VALVE SIZE
STANDARD NOMINAL FLOW RATE: 500 I/MIN
21VDC
CODE: M
VALVE TERMINALS CPV
COMPACT PERFORMANCE
ACCESSORIES
INDIVIDUAL SUB-BASE VALVE SIZES

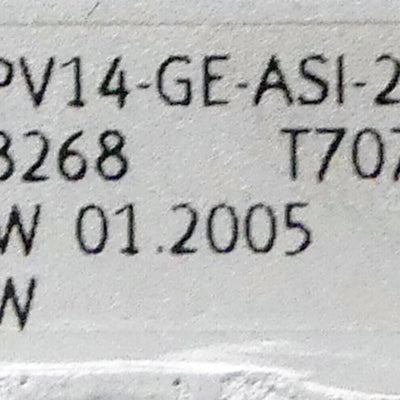

Festo • NRUS5094

CPV14GEASI2Z
MANIFOLD
ELECTRICAL INTERFACE
24 VDC
(18268)
+
161362
AIR SOLENOID VALVE
CPV SERIES
2X3/2
CLOSED
MONOSTABLE
ELECTRICAL ACTUATION
14 MM VALVE SIZE
800 L/MIN STANDARD NOMINAL FLOW RATE
G1/8 PNEUMATIC WORKING PORT
24 VDC OPERATING VOLTAGE
-0.9-10 BAR OPERATING PRESSURE
IP65
161362

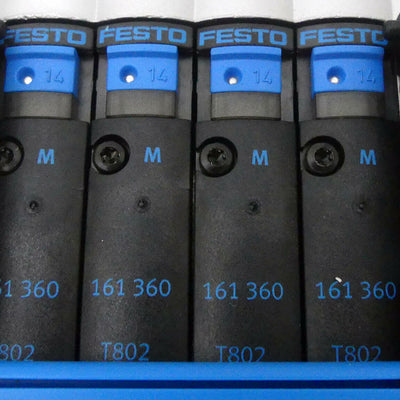

Festo • NRUS5102

CPV14GEASI2Z
MANIFOLD
ELECTRICAL INTERFACE
24 VDC
(18268)
+
161362
AIR SOLENOID VALVE
CPV SERIES
2X3/2
CLOSED
MONOSTABLE
ELECTRICAL ACTUATION
14 MM VALVE SIZE
800 L/MIN STANDARD NOMINAL FLOW RATE
G1/8 PNEUMATIC WORKING PORT
24 VDC OPERATING VOLTAGE
-0.9-10 BAR OPERATING PRESSURE
IP65
+
161360
AIR SOLENOID VALVE
5/2 WAY VALVE
SINGLE SOLENOID
SPOOL VALVE
14 MM VALVE SIZE
STANDARD NOMINAL FLOW RATE: 500 I/MIN
21VDC
CODE: M
VALVE TERMINALS CPV
COMPACT PERFORMANCE
ACCESSORIES
INDIVIDUAL SUB-BASE VALVE SIZES

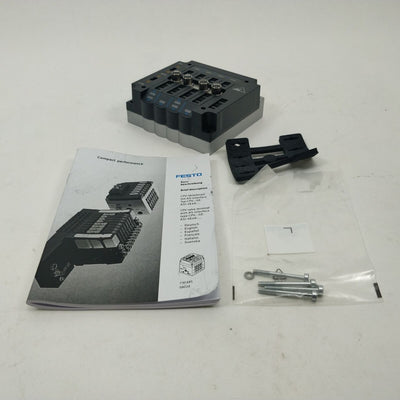

FESTO • GMUK3624

CPV14GEASI4E4AZM8
VALVE MANIFOLD
ELECTRICAL INTERFACE
0.9-10 BAR
(170539)

Festo • VSEU0760

FESTO
CPV14-GE-ASI-8E8A-Z
PLATE CONNECTOR

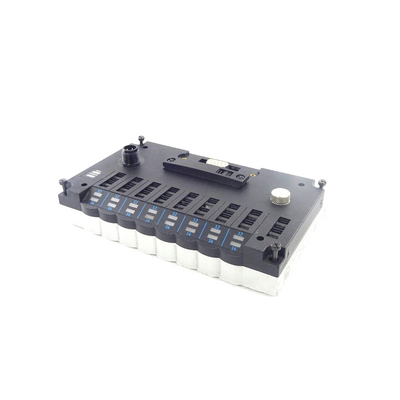

Festo • NKEU3807

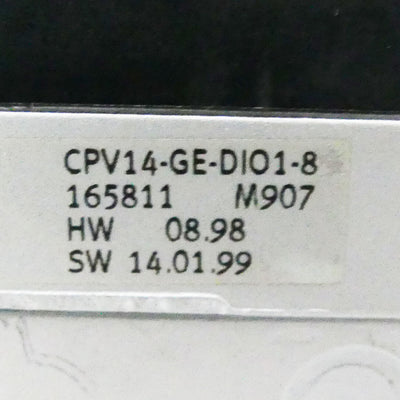

CPV14GEDI018
ELECTRICAL VALVE INTERFACE
24VDC
8 OUTPUT 1X16 SOLENOID COIL OMITTED
16 INPUT
9 PIN FEMALE CONNECTION PORT
IP65

Festo • NRUS5247

CPV14GEDI018
ELECTRICAL VALVE INTERFACE
24VDC
CYCLIC COMMUNICATION
8 OUTPUT 1X16 SOLENOID COIL OMITTED
16 INPUT
9 PIN FEMALE CONNECTION PORT
IP65 PROTECTION
+
162 550 M902
valve island
3x
